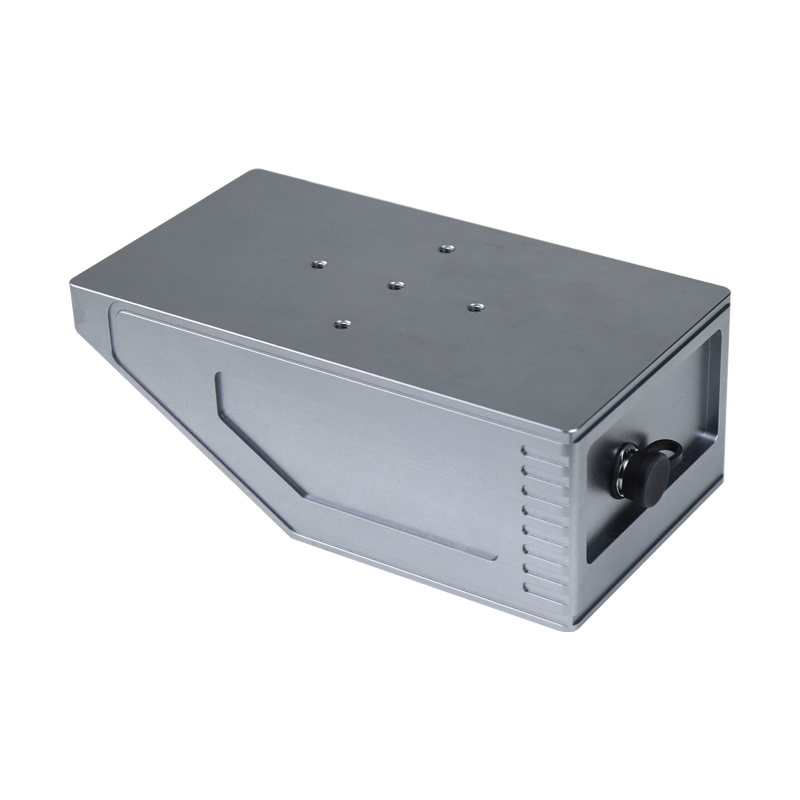

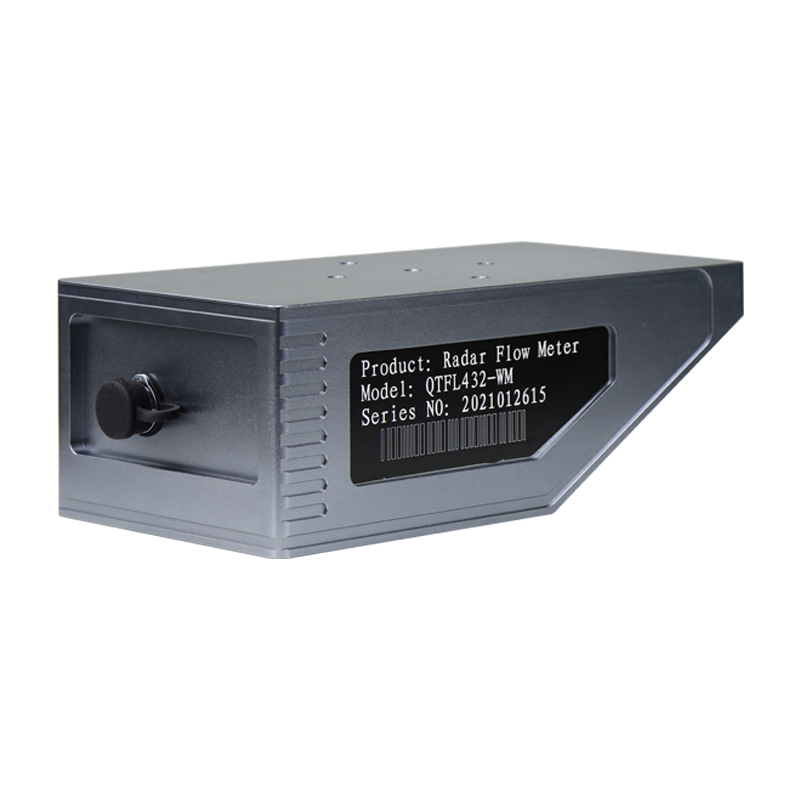

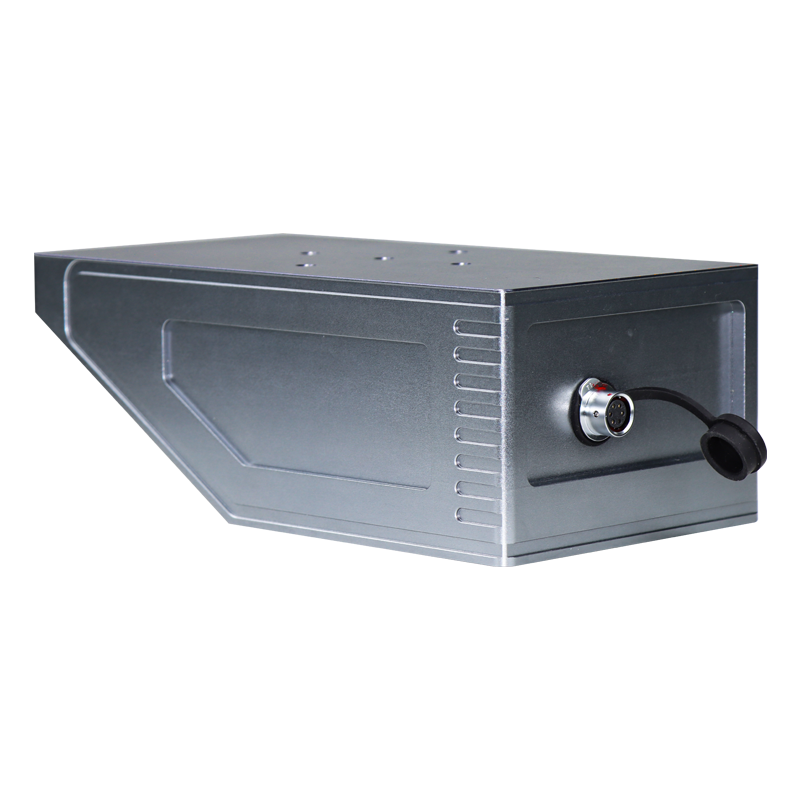

Radar Flowmeter

Description



Flowmeter parameter :

Supply current:50mA (working), ＜1mA (dormant)

Working temperature: -35~65℃ , storage temperature: -40~70℃

Outdoor protection grade: IP68

Speed range: 0.15~21m/s; speed accuracy: ±8.8mm/s

Resolution: 1mm/s; Direction distinguish: upstream

Measurement duration: 2~240s; Sampling interval: 0s~5h

Working frequency: 24Ghz; Distance to water surface: 0.5~35m

Power source: 6~30V DC (it’s recommended to use 12V DC)

Communication: RS485/Modbus protocol



Parameters of water level gauge :

Max. range: 0.5~30m

Precision: ±3mm

Environment temperature: -35~65℃

Repeatability: ±1mm

Material of antenna: PP

Frequency range: 26GHz

Signal output: RS485/Modbus protocol 6~30 V DC (it’s recommended to use 12V DC)
