Sanitary Reversing Valve

Specification
Body Material: AISI 304 / AISI 316
Sealing Material: TFE, O type seal ring
Up Diaphragm: NBR Diaphragm and standard diaphragm
Down Diaphragm: PTFE, EPDM rubber and standard diaphragm
O Type Ring: NBR Diaphragm and standard diaphragm
Connection Type: Weld Connection, Tri-Clamp Connection
Size: 1” – 4” / DN25 – DN100
Working Pressure: Max 10 Bar
Inside Treatment: Ra ≥ 0.4 – 0.8 u m
Outside Treatment: Ra ≥ 0.8 – 1.6 u m

Category:

Description

Application

Sanitary reversing valve has very flexible design which meets sanitary requirements, and is mainly used in pipeline system without contaminant or mixture. As a modern and widely used valve, it is mainly use in wine brewing, dairy, beverages, and pharmaceutical industries.
Operating System

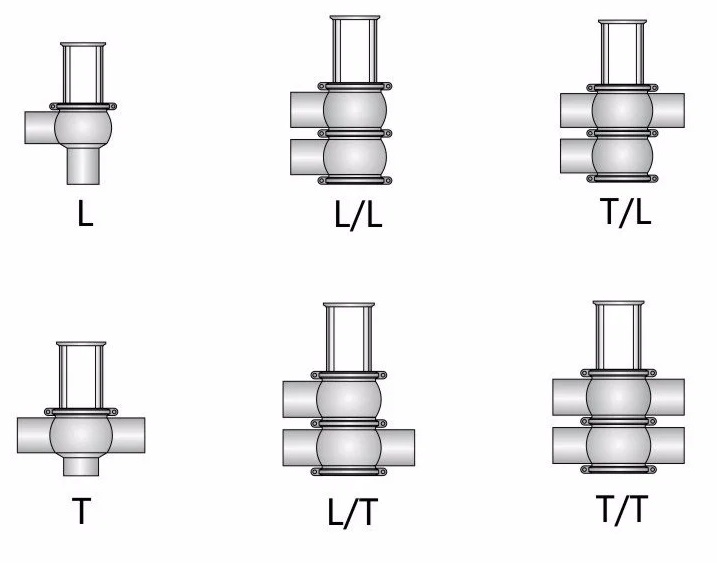

Sanitary reversing valve is remotely operated by means of compressed air or manula. By controlling the relative position of valve plug, it makes the valve open or closed (Shutt- off type), or changes the flow direction of media. Sanitary reversing valve can be installed with smart controller.
