Turbine Flowmeter

Size & Process Connection:

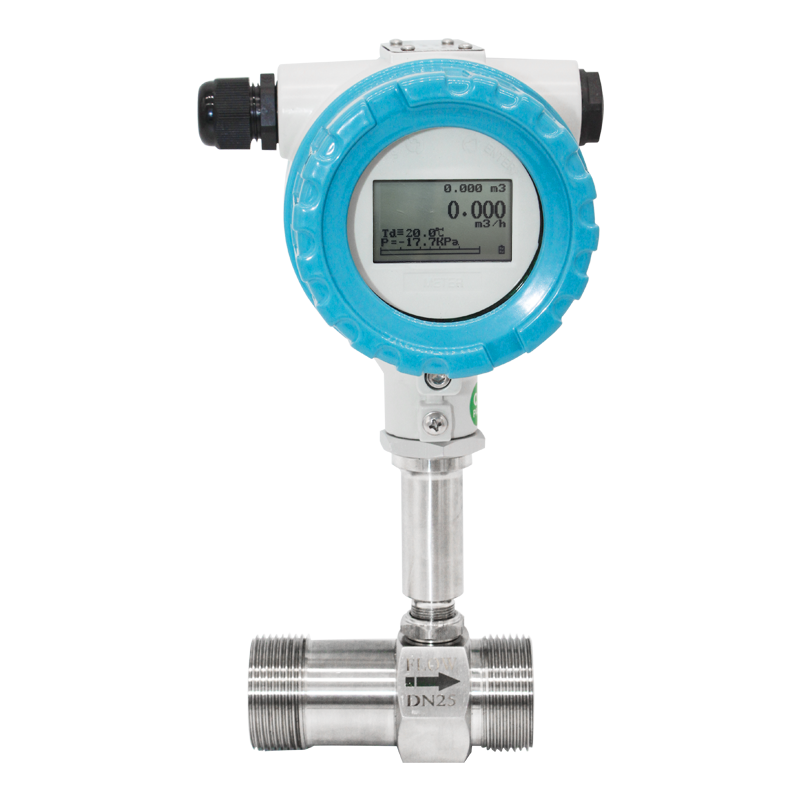

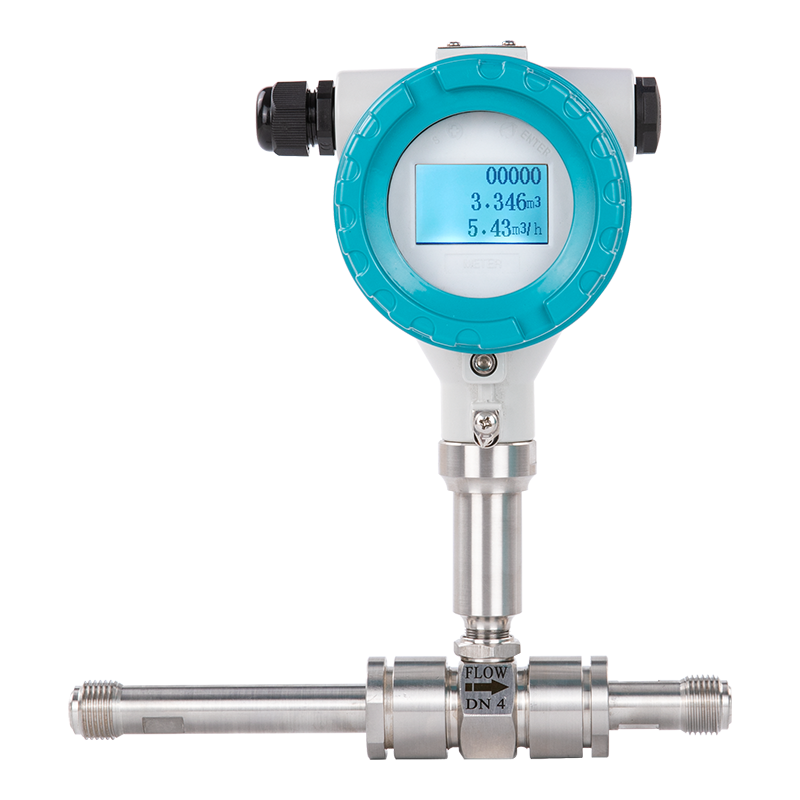

• Thread connection: DN4, 6, 10, 15, 20, 32, 40, 50, 65, 80, 100

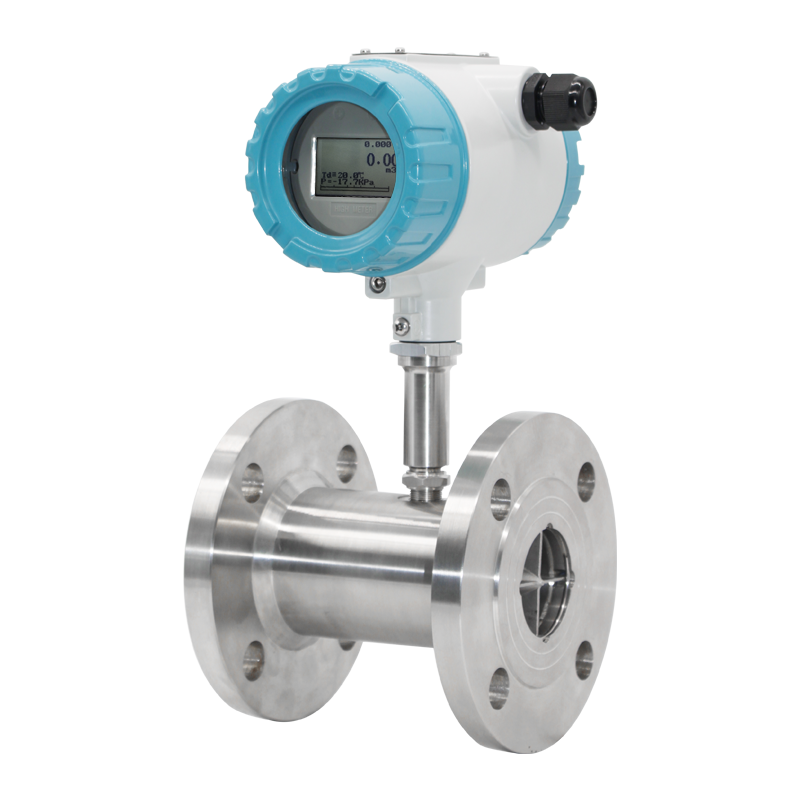

• Flange connection: DN15, 20, 32, 40, 50, 65, 80, 100, 125, 200

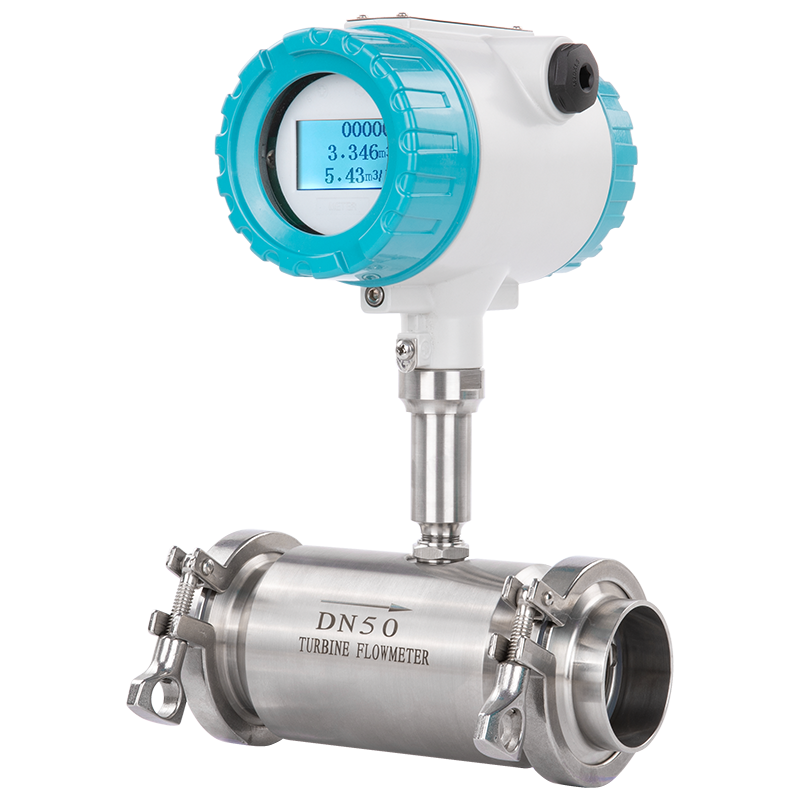

• Clamp connection: DN4, 6, 10, 15, 20, 32, 40, 50, 65, 80, 100

Accuracy: ±0.5%, ±0.2% Optional

Sensor Material: SS304, SS316L Optional

Ambient Conditions:

• Medium temperature: -20℃ ~ +150℃

• Atmospheric pressure: 86Kpa ~ 106Kpa

• Ambient temperature: -20℃ ~ +60℃

• Relative humidity: 5% ~ 90%

Signal Output: Pulse, 4-20mA, Alarm (optional)

Digital Communication: RS485, MODBUS, HART

Power Supply: 24V DC / 3.6V Lithium Battery

Cable Entry: M20*1.5, 1/2” NPT

Explosion-proof class: Ex d IIC T6 Gb ( Optional )

Protection class: IP65; IP67 Optional
