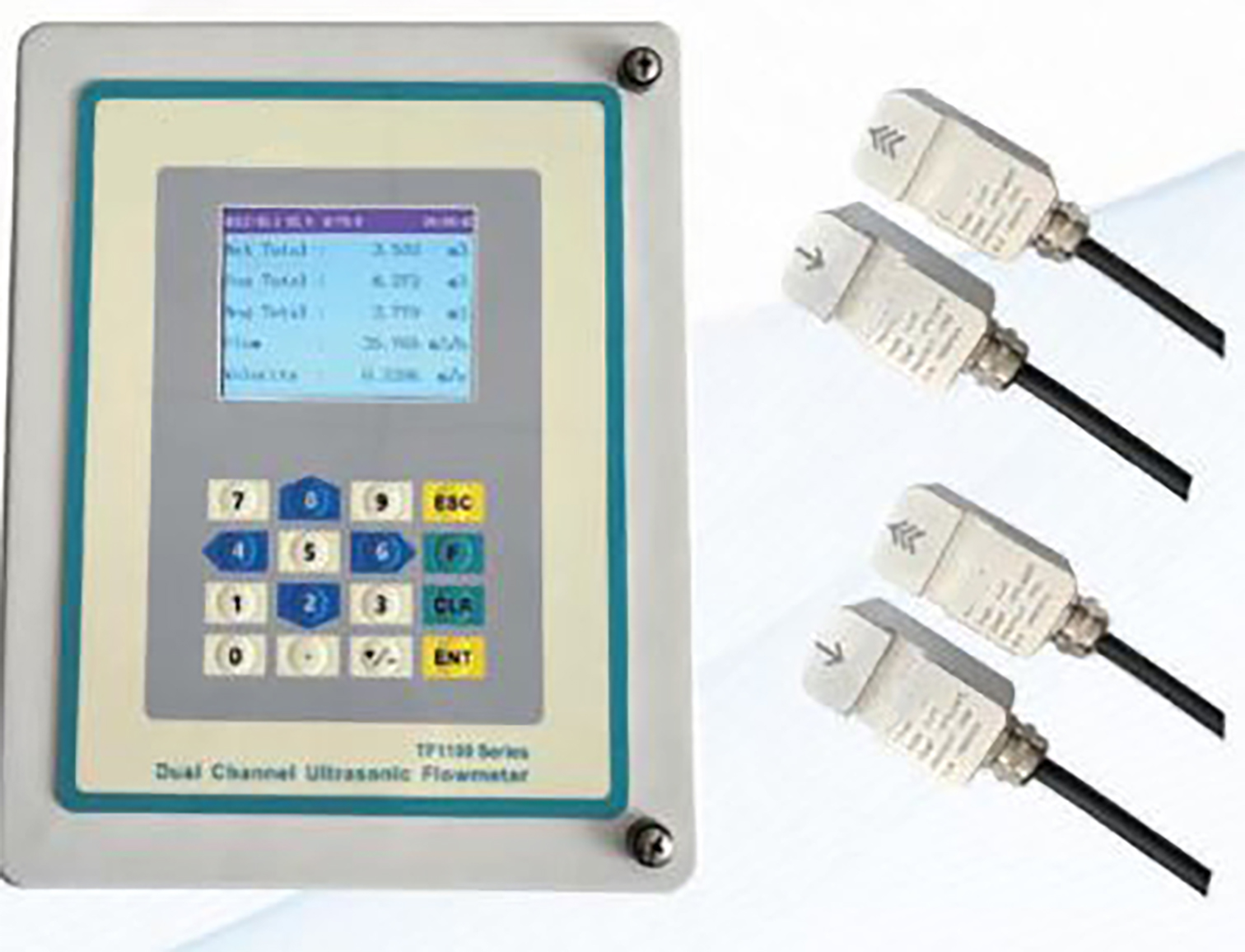

Wallmounted Dual Channel Flowmeter

Description

Measurement principle: Ultrasonic transit-time difference correlation principle
Flow velocity range: 0.01 to 15 m/s, bi-directional
Resolution: 0.1 mm/s
Repeatability: 0.15% of reading
Accuracy: 0.5%R
Response time: 0.5 s
Sensitivity: 0.0001 m/s
Damping of displayed value: 0–99 s (selectable by user)
Liquid Types Supported: Both clean and somewhat dirty liquids with turbidity < 10000 ppm
Power Supply: AC: 85–265V DC: 12–24V
Enclosure type: Wall-mounted
Degree of protection: IP66 according to EN60529
Operating temperature: –10°C to 60°C
Housing material: Fiberglass
Display: 3.5″ color LCD display, 16 keys
Units: User configured (English and Metric)
Rate: Rate and Velocity Display
Totalized: gallons, ft³, barrels, lbs, litres, m³, kg
Thermal energy: unit GJ, kWh can be optional
Communication: 4–20mA, OCT, Relay, RS485(Modbus), Datalogger, GPRS, NB-IoT
Size: 244 mm × 184 mm × 114 mm
Weight: 2.4 kg

Transducer:

Degree of protection: Standard IP65; IP67, IP68 can be optional
Suited Liquid Temperature: –35°C ~ 200°C
Pipe diameter range: 20–50 mm for type B; 40–5000 mm for type A
Transducer Size:

• Type B: 40(H) × 24(W) × 22(D) mm

• Type A: 48(H) × 31(W) × 28(D) mm
  Material of transducer: Aluminum + Peek
  Cable Length: Std: 5 m
  Temperature Sensor: PT1000 clamp-on Accuracy: ±0.1%
